simulink 报错Derivative of state ‘1‘ in block ..... at time 0.0 is not finite.
·

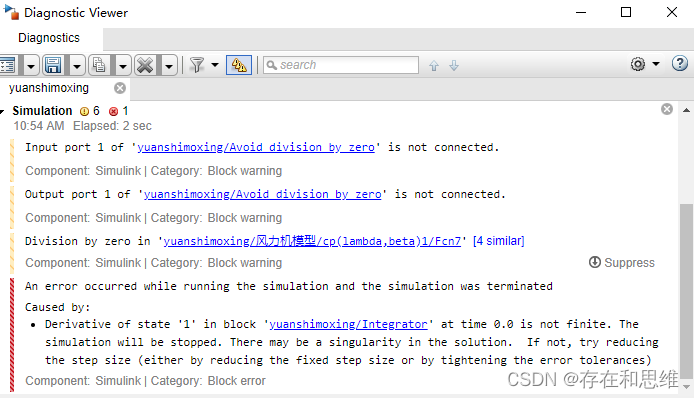

An error occurred while running the simulation and the simulation was terminated
Caused by:
Derivative of state ‘1’ in block ‘yuanshimoxing/Integrator’ at time 0.0 is not finite. The simulation will be stopped. There may be a singularity in the solution. If not, try reducing the step size (either by reducing the fixed step size or by tightening the error tolerances)
翻译后
在时间0.0时,“元时数/积分器”块中状态“1”的导数不是有限的。模拟将停止。解中可能有一个奇点。如果没有,尝试减小步长(通过减小固定步长或收紧误差容限)

解决办法
加入这个模块
如果找不到
在库中搜 Wind Turbine

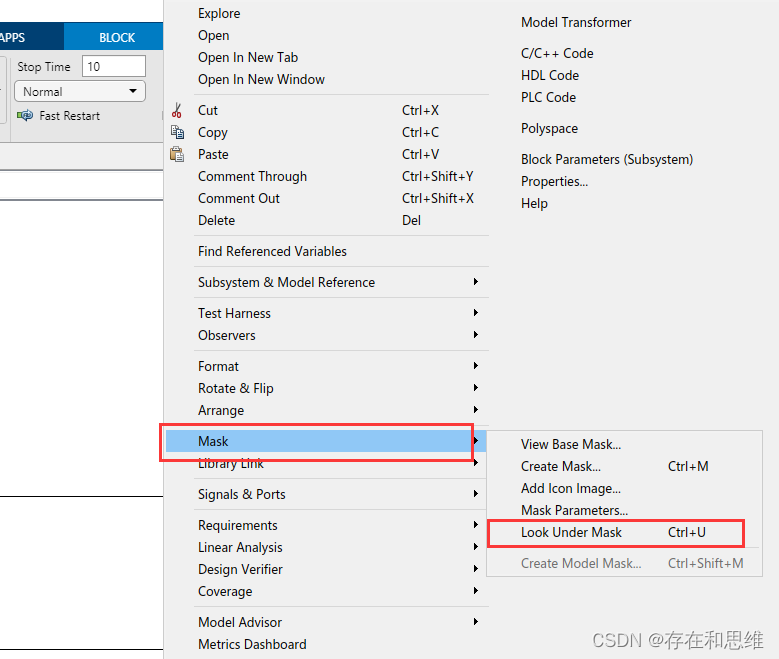

右击这个模块
打开后复制
运行后可以运行
